NEMA17 stepper motor 1.8 degrees per step, 48mm long (4.8 kg/cm)

Description This powerful stepper motor is widely applied to most RepRap 3D printers and CNC machines.

The stepper motor is equipped with a connector and can easily be connected with a stepper motor cable.

We recommend the Stepstick DRV8825 driver or equivalent as the most suitable for this stepper motor.

Specifications

Tunnel code:	n/a	Voltage:	3 v
Dimensions:	42.3 x 42.3 x 48 mm	Brand:	123-3D
Resistance:	1.2	Current rating:	2.5 A
No of leads:	4	Stepper shaft length:	22 mm
Shaft:	5 mm	Hazard class:	n/a
Holding torque:	4.8 kg-cm	Our item no:	DMO00052

Order now, we can ship this tomorrow!

£14.50 (Incl. 20% VAT)
(£12.08 Excl. 20% VAT)

in stock

NEMA17 stepper motor 1.8 degrees per step, 47mm long (5.0 kg/cm)

Zoom in

Description This powerful stepper motor is suitable for most RepRap 3D printers and CNC machines. Due to its D-shaped shaft, pulleys and couplings are easy to attach and thanks to the connector it can easily be connected with a stepper motor cable. This stepper motor is compatible with the 42BYGHW811 variant.

We recommend the Stepstick DRV8825 driver (or equivalent) as the most suitable for this stepper motor.

Specifications

Tunnel code:	n/a	Stepper type:	SL42S247A
Length:	47 mm	Current rating:	2.5 A
Stepping angle:	1.8	Weight:	0.36 kg
Shaft:	5 mm	Stepper size:	Nema 17
Holding torque:	5 kg-cm	Hazard class:	n/a
Voltage:	3.3 v	Our item no:	DMO00024
Brand:	123-3D

Order now, we can ship this tomorrow!

£13.50 (Incl. 20% VAT)
(£11.25 Excl. 20% VAT)

in stock

NEMA17 stepper motor 1.8 degrees per step, 47mm long, 5kg/cm (4-pack)

Zoom in

Description This powerful stepper motor is suitable for most RepRap 3D printers and CNC machines. Due to its D-shaped shaft, pulleys and couplings are easy to attach and thanks to the connector it can easily be connected with a stepper motor cable. This stepper motor is compatible with the 42BYGHW811 variant.

We recommend the Stepstick DRV8825 driver (or equivalent) as the most suitable for this stepper motor.

This is a 4-pack.

Specifications

Tunnel code:	n/a	Stepper type:	SL42S247A
Length:	47 mm	Current rating:	2.5 A
Stepping angle:	1.8	Weight:	0.36 kg
Shaft:	5 mm	Stepper size:	Nema 17
Holding torque:	5 kg-cm	Hazard class:	n/a
Voltage:	3.3 v	Our item no:	DMO00025
Brand:	123-3D

Order now, we can ship this tomorrow!

£68.50 (Incl. 20% VAT)
(£57.08 Excl. 20% VAT)

in stock

NEMA17 stepper motor 1.8 degrees per step, 40mm long (4.08 kg/cm)

Zoom in

Description This powerful stepper motor is widely applied to most RepRap 3D printers and CNC machines.

The stepper motor is equipped with a connector and can easily be connected with a stepper motor cable.

We recommend the Stepstick DRV8825 driver or equivalent as the most suitable for this stepper motor.

Specifications

Tunnel code:	n/a	Brand:	123-3D
Dimensions:	42.3 x 42.3 x 40 mm	Current rating:	1.2 A
Stepping angle:	1.8	Stepper size:	Nema 17
No of leads:	4	Stepper shaft length:	22 mm
Shaft:	5 mm	Hazard class:	n/a
Holding torque:	4.08 kg-cm	Our item no:	DMO00051
Voltage:	2.55 v

Order now, we can ship this tomorrow!

£11.95 (Incl. 20% VAT)
(£9.96 Excl. 20% VAT)

in stock

NEMA17 stepper motor 1.8 degrees per step, 27mm long, 1.33kg/cm

Zoom in

Description This shorter stepper motor is ideal for the extruder and takes up less space on your 3D printer.
Due to its D-shaped shaft, pulleys and couplings are easy to attach.

The stepper motor is equipped with a connector and can easily be connected with a stepper motor cable.

We recommend the Stepstick DRV8825 driver or equivalent as the most suitable for this stepper motor.

Specifications

Tunnel code:	n/a	Height:	27 mm
Stepping angle:	1.8	Brand:	123-3D
No of leads:	4	Hazard class:	n/a
Shaft:	5 mm	Our item no:	DMO00054

Order now, we can ship this tomorrow!

£11.95 (Incl. 20% VAT)
(£9.96 Excl. 20% VAT)

in stock

NEMA17 stepper motor 0.9 degrees per step, 48mm long (4.2kg/cm)

Zoom in

Description This high-resolution stepper motor is suitable for most RepRap 3D printers. By double the number of steps per revolution (400 steps), this stepper motor increases the precision of your 3D printer. The stepper motor is equipped with a connector and can be easily connected with a stepper motor cable

The following colours are used for the wiring:

a	+	=	Black
a	-	=	Green
B	+	=	Red
B	-	=	Blue

We recommend the Stepstick DRV8825 driver or equivalent as the most suitable for this stepper motor.

Specifications

Tunnel code:	n/a	Shaft:	5 mm
Dimensions:	42.3 x 42.3 x 48 mm	Holding torque:	4.2 kg-cm
Resistance:	1.8	Voltage:	3.1 v
Current rating:	1.7 A	Brand:	123-3D
AWG:	24	Stepper shaft length:	22 mm
Mounting hole:	M3	Hazard class:	n/a
Stepping angle:	0.9	Our item no:	DMO00050
No of leads:	4

Order now, we can ship this tomorrow!

£13.50 (Incl. 20% VAT)
(£11.25 Excl. 20% VAT)

in stock

NEMA17 stepper motor 0.9 degrees per step, 34mm long, 2.1kg/cm

Zoom in

Description This high resolution stepper motor with D axis is suitable for most RepRap 3D printers. By double the number of steps per revolution ( 400 steps ), this stepper motor increases the precision of your 3D printer. The stepper motor is equipped with a connector and can be easily connected with a stepper motor cable

The following colours are used for the wiring:

a	+	=	Black
a	-	=	Green
B	+	=	Red
B	-	=	Blue

We recommend the Stepstick DRV8825 driver or equivalent as the most suitable for this stepper motor.

Specifications

Tunnel code:	n/a	Voltage:	2.04 v
Dimensions:	42.3 x 42.3 x 34 mm	Brand:	123-3D
AWG:	24	Stepper type:	SL42S234MA107
Stepping angle:	0.9	Current rating:	1.2 A
No of leads:	4	Stepper shaft length:	24 mm
Shaft:	5 mm	Hazard class:	n/a
Holding torque:	2.1 kg-cm	Our item no:	DMO00053
Screwthread type:	M3

Order now, we can ship this tomorrow!

£13.50 (Incl. 20% VAT)
(£11.25 Excl. 20% VAT)

in stock

NEMA17 stepper motor 0.9 degrees per step, 27mm long, 1.33kg/cm

Zoom in

Description This extra short high-resolution stepper motor has no less than 400 steps per revolution. And is therefore extremely suitable for projects where high precision is required.

We recommend the Stepstick DRV8825 driver or equivalent as the most suitable for this stepper motor.

NB:
The sticker on the motor indicates 1.8 degrees per step. But the motor is 0.9 degrees per step.

Specifications

Tunnel code:	n/a	Brand:	123-3D
Dimensions:	42 x 42 x 27 mm	Stepper type:	SL42S225MA2B
Resistance:	2	Current rating:	1.4 A
Stepping angle:	0.9	Weight:	0.285 kg
No of leads:	4	Stepper size:	Nema 17
Shaft:	5 mm	Hazard class:	n/a
Holding torque:	1.33 kg-cm	Our item no:	DMO00040
Voltage:	2.8 v

Order now, we can ship this tomorrow!

£12.75 (Incl. 20% VAT)
(£10.63 Excl. 20% VAT)

in stock

Stepstick DRV8825 Stepper Motor Driver (123-3D version)

Zoom in

Description The Stepstick DRV8825 is a powerful stepper motor driver and can deliver no less than 2.5A (if properly cooled). It is compatible with Megatronics and the ideal stepper motor driver for current 3D printers.

The Stepstick DRV8825 has the following features:

Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step and 1/32-step
Protected against too high temperatures
Protected against undervoltage
Protected against too high currents
Supports different decay modes
Simple step control interface

Cooling block included (including adhesive layer).

Additional information: data sheet (PDF)

Specifications

Tunnel code:	n/a	Max current:	2.5 A
Length:	20.4 mm	Brand:	123-3D
Operating volt logic:	3.5 - 25V	Hazard class:	n/a
Operating volt vmot:	-	Our item no:	DSD00002
Width:	15.6 mm

Order now, we can ship this tomorrow!

£5.60 (Incl. 20% VAT)
(£4.67 Excl. 20% VAT)

in stock

Flexible motor coupling, 5mm x 5mm

Zoom in

Description This flexible motor coupling (5mm x 5mm) connects the stepper motor and the M5 rod. The flexible shaft coupling reduces Z-axis wobble problems, improving printing results.

Specifications

Tunnel code:	n/a	Length:	25 mm
Material:	aluminium	Brand:	123-3D
Outer diameter:	20 mm	Hazard class:	n/a
Hole diameter:	5 mm	Our item no:	DMO00012
Hole diameter:	5 mm

Order now, we can ship this tomorrow!

£3.90 (Incl. 20% VAT)
(£3.25 Excl. 20% VAT)

in stock

Flexible motor coupling, 5mm x 8mm

Zoom in

Description This flexible motor coupling (5mm x 8mm) connects the stepper motor and the M8 rod. The flexible shaft coupling reduces Z-axis wobble problems, improving printing results.

Specifications

Tunnel code:	n/a	Length:	25 mm
Outer diameter:	20 mm	Brand:	123-3D
Hole diameter:	5 mm	Hazard class:	n/a
Hole diameter:	8 mm	Our item no:	DMO00013

Order now, we can ship this tomorrow!

£3.90 (Incl. 20% VAT)
(£3.25 Excl. 20% VAT)

in stock

Flexible black motor coupling, 5mm x 5mm

Zoom in

Description This 5mm black flexible motor coupling connects the stepper motor and the M5 rod. The flexible shaft coupling reduces Z-axis wobble problems, improving printing results.

Specifications

Tunnel code:	n/a	Hole diameter:	5 mm
Length:	25 mm	Colour:	black
Material:	aluminium	Brand:	123-3D
Outer diameter:	20 mm	Hazard class:	n/a
Hole diameter:	5 mm	Our item no:	DAR00022

Order now, we can ship this tomorrow!

£4.95 (Incl. 20% VAT)
(£4.13 Excl. 20% VAT)

in stock

Motor coupling, 5mm x 8mm

Zoom in

Description This motor coupling (5mm x 8mm) connects the stepper motor and the M8 rod.

Specifications

Tunnel code:	n/a	Hole diameter:	8 mm
Length:	25 mm	Brand:	123-3D
Outer diameter:	20 mm	Hazard class:	n/a
Hole diameter:	5 mm	Our item no:	DMO00045

Order now, we can ship this tomorrow!

£3.70 (Incl. 20% VAT)
(£3.08 Excl. 20% VAT)

in stock

Motor coupling, 5mm x 5mm

Zoom in

Description This motor coupling (5mm x 5mm) connects the stepper motor and the M5 rod.

Specifications

Tunnel code:	n/a	Length:	25 m
Material:	aluminium	Brand:	123-3D
Outer diameter:	20 mm	Hazard class:	n/a
Hole diameter:	5 mm	Our item no:	DMO00046
Hole diameter:	5 mm

Order now, we can ship this tomorrow!

£3.70 (Incl. 20% VAT)
(£3.08 Excl. 20% VAT)

in stock

NEMA17 metal damper

Zoom in

Description This NEMA17 damper is a silencer made of two layers of metal and has an intermediate material of rubber.
The damper ensures less transfer of vibrations to the frame of your 3D printer or CNC machine. This makes your machine even quieter.

Specifications

Tunnel code:	n/a	Hazard class:	n/a
Brand:	123-3D	Our item no:	DMO00026

Order now, we can ship this tomorrow!

£5.25 (Incl. 20% VAT)
(£4.38 Excl. 20% VAT)

in stock

NEMA17 cork damper

Zoom in

Description This cork damper reduces the transfer of vibrations to the frame of your 3D printer or CNC machine. The damper has a thickness of 1.5mm.

Specifications

Tunnel code:	n/a	Brand:	123-3D
Thickness:	1.5 mm	Hazard class:	n/a
Length:	42 mm	Our item no:	DMO00028
Width:	42 mm

Order now, we can ship this tomorrow!

£2.40 (Incl. 20% VAT)
(£2.00 Excl. 20% VAT)

in stock

NEMA17 mounting plate

Zoom in

Description With this sturdy, black anodised aluminium mounting plate you can quickly and easily fix a NEMA17 stepper motor to a frame.

Specifications

Tunnel code:	n/a	Brand:	123-3D
Dimensions:	82 x 39.5 x 3 mm	Hazard class:	n/a
Material:	aluminium	Our item no:	DFC00029
Colour:	black

Order now, we can ship this tomorrow!

£4.80 (Incl. 20% VAT)
(£4.00 Excl. 20% VAT)

in stock

NEMA17 90° ABS motor bracket

Zoom in

Description This NEMA17 motor bracket is made of injection molded ABS. Its low weight makes it perfect for mounting a direct drive extruder.

Specifications

Tunnel code:	n/a	Stepper size:	Nema 17
Dimensions:	62 x 40 x 44 mm	Hazard class:	n/a
Material:	ABS	Our item no:	DFC00059
Brand:	123-3D

Order now, we can ship this tomorrow!

£4.30 (Incl. 20% VAT)
(£3.58 Excl. 20% VAT)

in stock

Metal mounting bracket for NEMA17 stepper motor, 90° L-bracket

Zoom in

Description Easily mount your NEMA17 stepper motor with this L-bracket.

Specifications

Tunnel code:	n/a	Height:	52 mm
Material:	steel	Brand:	123-3D
Thickness:	3.5 mm	Hazard class:	n/a
Length:	50 mm	Our item no:	DFC00036
Width:	50 mm

Order now, we can ship this tomorrow!

£6.25 (Incl. 20% VAT)
(£5.21 Excl. 20% VAT)

in stock

Stepper motor cable 4-wire, 30cm

Zoom in

Description This 4-wire cable is suitable for connecting your stepper motor. The cable has a length of 30cm and is equipped with a 6-pin connector and a 4-pin connector.

The 6-pin connector is compatible with the SL42S247A stepper motor.

Specifications

Tunnel code:	n/a	Brand:	123-3D
No of contacts:	4	Hazard class:	n/a
Length:	30 cm	Our item no:	DDK00023

Order now, we can ship this tomorrow!

£1.50 (Incl. 20% VAT)
(£1.25 Excl. 20% VAT)

in stock

4-wire cable blue / red / green / black, 1m

Zoom in

Description This 4-wire cable is suitable for extending the stepper motor cabling. This package contains 1m of cable and has an open end on both sides.

Specifications

Tunnel code:	n/a	Length:	1 m
No of contacts:	4	Brand:	123-3D
Cross sectional area:	0.33	Hazard class:	n/a
Width:	6.3 mm	Our item no:	DDK00063

Order now, we can ship this tomorrow!

£1.50 (Incl. 20% VAT)
(£1.25 Excl. 20% VAT)

in stock

Stepper motor cable 4p-6p-JST, 50cm

Zoom in

Description This 4-wire cable is suitable for connecting your stepper motor. The cable has a length of 50cm and is equipped with a 6-pin connector and a 4-pin connector.

Specifications

Tunnel code:	n/a	Brand:	123-3D
No of leads:	4	Hazard class:	n/a
Cable length:	50 cm	Our item no:	DAR00792

Order now, we can ship this tomorrow!

£1.75 (Incl. 20% VAT)
(£1.46 Excl. 20% VAT)

in stock

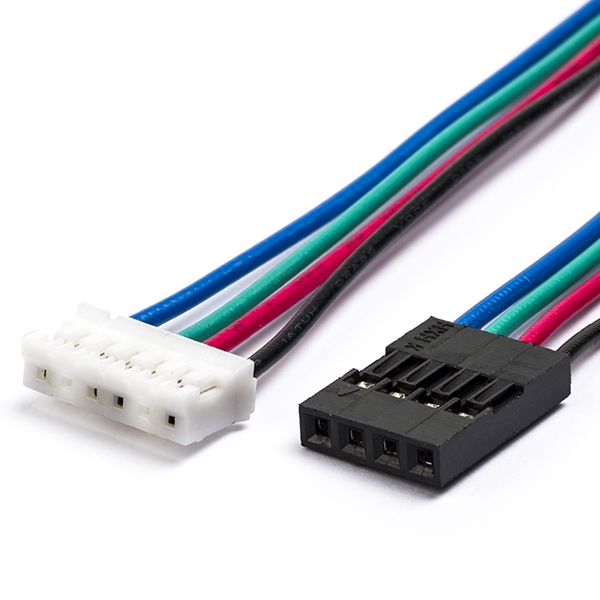

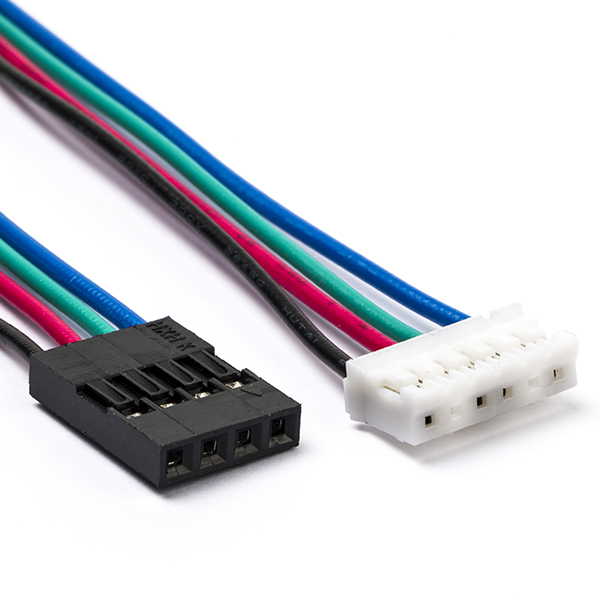

Stepper motor cable 4-pin Dupont 6-pin JST, 80cm

Zoom in

Description

This 4-wire cable is suitable for connecting a stepper motor. The cable has a length of 80cm and is equipped with a 6-pin JST connector and a 4-pin Dupont connector.

Specifications

Tunnel code:	n/a	Brand:	123-3D
No of leads:	4	Hazard class:	n/a
Length:	80 cm	Our item no:	DDK00059

Order now, we can ship this tomorrow!

£2.26 (Incl. 20% VAT)
(£1.88 Excl. 20% VAT)

in stock

Bondtech heatsink

Zoom in

Description This heatsink can be used to cool various parts. This part is easy to attach thanks to the self-adhesive back.

Due to the size of 40 x 40 x 11mm, this heatsink fits well on nema17 stepper motors.

Specifications

Tunnel code:	n/a	Brand:	Bondtech
Dimensions:	40 x 40 x 11 mm	Weight:	18 grams
Material:	aluminium	Hazard class:	n/a
Colour:	black	Our item no:	DBO00048

Order now, we can ship this tomorrow!

£2.60 (Incl. 20% VAT)
(£2.17 Excl. 20% VAT)

in stock

Flexible black motor coupling, 5mm x 8mm

Zoom in

Description This black flexible motor coupling (5mm x 8mm) connects the stepper motor and the leadscrew. The flexible shaft coupling reduces Z-axis wobble problems, improving printing results.

Specifications

Tunnel code:	n/a	Hole diameter:	8 mm
Length:	25 mm	Colour:	black
Material:	aluminium	Brand:	123-3D
Outer diameter:	20 mm	Hazard class:	n/a
Hole diameter:	5 mm	Our item no:	DMO00057

Order now, we can ship this tomorrow!

£5.50 (Incl. 20% VAT)
(£4.58 Excl. 20% VAT)

in stock

Flexible black motor coupling, 6.35mm x 8mm

Zoom in

Description Improve the accuracy of your 3D printer with this flexible motor coupling.

By attaching this flexible motor coupling to your Y-axis, you can easily reduce the vibrations during 3D printing and improve the quality of your prints. The coupling is suitable for stepper motors with an input diameter of 6.35mm and rods/bars of 8mm.

Specifications

Tunnel code:	n/a	Hole diameter:	8 mm
Length:	25 mm	Colour:	black
Material:	aluminium	Brand:	123-3D
Outer diameter:	20 mm	Hazard class:	n/a
Hole diameter:	6.35 mm	Our item no:	DMO00058

£4.95 (Incl. 20% VAT)
(£4.13 Excl. 20% VAT)

14 day delivery

Flexible black motor coupling, 8mm x 8mm

Zoom in

Description This black flexible motor coupling (8mm x 8mm) connects the stepper motor and the leadscrew. The flexible shaft coupling reduces Z-axis wobble problems, improving printing results.

Specifications

Tunnel code:	n/a	Hole diameter:	8 mm
Length:	25 mm	Colour:	black
Material:	aluminium	Brand:	123-3D
Outer diameter:	20 mm	Hazard class:	n/a
Hole diameter:	8 mm	Our item no:	DMO00059

Order now, we can ship this tomorrow!

£5.50 (Incl. 20% VAT)
(£4.58 Excl. 20% VAT)

in stock

NEMA17 Heat sink, 40mm x 40mm x 11mm

Zoom in

Description This heatsink can be used to cool various parts. This part is easy to attach thanks to the self-adhesive back.

Due to the size of 40mm x 40mm x 11mm, this heatsink fits well on NEMA17 stepper motors.

Specifications

Tunnel code:	n/a	Brand:	123-3D
Dimensions:	40 x 40 x 11 mm	Weight:	18 grams
Material:	aluminium	Hazard class:	n/a
Colour:	black	Our item no:	DMO00078

Order now, we can ship this tomorrow!

£1.95 (Incl. 20% VAT)
(£1.63 Excl. 20% VAT)

in stock

Creality 3D NEMA17 42-34 stepper motor kit for Z-axis

Zoom in

Description

The Creality 3D NEMA17 42-34 stepper motor Z-axis motor kit has an axis length of 16mm.
The table below shows which size stepper motor that fits which axis on the different Creality 3D models:

	X-axis	Y-axis	Z-axis	extruder
CR-10 Mini	42-34	42-34	42-34	42-40
CR-10S (300)	42-40	42-40	42-34	42-40
CR-10-S4 (400)	42-40	42-60	42-34	42-40
CR-10-S5 (500)	42-40	42-60	42-34	42-40
CR-10S Pro	42-40	42-40	42-34	42-40
CR-X	42-40	42-40	42-34	42-40
CR20 Pro	42-34	42-34	42-34	42-40
Ender-3	42-34	42-34	42-34	42-40
Ender-3 Pro	42-34	42-34	42-34	42-40
Ender-5	42-34	42-40 (dual shaft)	42-34 (round shaft)	42-40

Specifications

Tunnel code:	n/a	Hazard class:	n/a
Brand:	Creality3D	Our item no:	DAR00047
Stepper shaft length:	16 mm

Order now, we can ship this tomorrow!

£24.50 (Incl. 20% VAT)
(£20.42 Excl. 20% VAT)

in stock

Creality 3D NEMA17 stepper motor, 42-40, 16mm long

Zoom in

Description This stepper motor is suitable for most Creality 3D printers.

The table bellow shows which size stepper motor that fits which axis on the different Creality 3D models:

	X-axis	Y-axis	Z-axis	extruder
CR-10 Mini	42-34	42-34	42-34	42-40
CR-10S (300)	42-40	42-40	42-34	42-40
CR-10-S4 (400)	42-40	42-60	42-34	42-40
CR-10-S5 (500)	42-40	42-60	42-34	42-40
CR-10S Pro	42-40	42-40	42-34	42-40
CR-X	42-40	42-40	42-34	42-40
CR20 Pro	42-34	42-34	42-34	42-40
Ender-3	42-34	42-34	42-34	42-40
Ender-3 Pro	42-34	42-34	42-34	42-40
Ender-5	42-34	42-40 (dual shaft)	42-34 (round shaft)	42-40

Specifications

Tunnel code:	n/a	Stepper shaft length:	16 mm
Brand:	Creality3D	Hazard class:	n/a
Stepper size:	Nema 17	Our item no:	DAR00051

This product is end of life.

Creality 3D NEMA17 42-40 Stappenmotor motor (axis length 22mm)

Zoom in

Description

The table bellow shows which size stepper motor that fits which axis on the different Creality 3D models:

	X-axis	Y-axis	Z-axis	extruder
CR-10 Mini	42-34	42-34	42-34	42-40
CR-10S (300)	42-40	42-40	42-34	42-40
CR-10-S4 (400)	42-40	42-60	42-34	42-40
CR-10-S5 (500)	42-40	42-60	42-34	42-40
CR-10S Pro	42-40	42-40	42-34	42-40
CR-X	42-40	42-40	42-34	42-40
CR20 Pro	42-34	42-34	42-34	42-40
Ender-3	42-34	42-34	42-34	42-40
Ender-3 Pro	42-34	42-34	42-34	42-40
Ender-5	42-34	42-40 (dual shaft)	42-34 (round shaft)	42-40

Specifications

Tunnel code:	n/a	Hazard class:	n/a
Brand:	Creality3D	Our item no:	DAR00052
Stepper shaft length:	22 mm

This product is end of life.

Creality 3D NEMA17 40-40 CR-10 X-axis motor kit (with pulley) (axis length 22 mm)

Zoom in

Description

The table bellow shows which size stepper motor that fits which axis on the different Creality 3D models:

	X-axis	Y-axis	Z-axis	extruder
CR-10 Mini	42-34	42-34	42-34	42-40
CR-10S (300)	42-40	42-40	42-34	42-40
CR-10-S4 (400)	42-40	42-60	42-34	42-40
CR-10-S5 (500)	42-40	42-60	42-34	42-40
CR-10S Pro	42-40	42-40	42-34	42-40
CR-X	42-40	42-40	42-34	42-40
CR20 Pro	42-34	42-34	42-34	42-40
Ender-3	42-34	42-34	42-34	42-40
Ender-3 Pro	42-34	42-34	42-34	42-40
Ender-5	42-34	42-40 (dual shaft)	42-34 (round shaft)	42-40

Specifications

Tunnel code:	n/a	Stepper shaft length:	22 mm
Brand:	Creality3D	Hazard class:	n/a
Stepper size:	Nema 17	Our item no:	DAR00053

This product is end of life.

Creality 3D NEMA17 42-34 CR-10S Pro / CR-X Z-axis Active Kit

Zoom in

Description

The table bellow shows which size stepper motor that fits which axis on the different Creality 3D models:

	X-axis	Y-axis	Z-axis	extruder
CR-10 Mini	42-34	42-34	42-34	42-40
CR-10S (300)	42-40	42-40	42-34	42-40
CR-10-S4 (400)	42-40	42-60	42-34	42-40
CR-10-S5 (500)	42-40	42-60	42-34	42-40
CR-10S Pro	42-40	42-40	42-34	42-40
CR-X	42-40	42-40	42-34	42-40
CR20 Pro	42-34	42-34	42-34	42-40
Ender-3	42-34	42-34	42-34	42-40
Ender-3 Pro	42-34	42-34	42-34	42-40
Ender-5	42-34	42-40 (dual shaft)	42-34 (round shaft)	42-40

Specifications

Tunnel code:	n/a	Hazard class:	n/a
Brand:	Creality3D	Our item no:	DAR00069
Stepper size:	Nema 17

£26.75 (Incl. 20% VAT)
(£22.29 Excl. 20% VAT)

14 day delivery

Creality 3D NEMA17 Y-axis 42-40 stepper motor with dual shaft

Zoom in

Description

Creality 3D 42-40 Motor with Dual Shaft
Used on the Y-axis on the Ender-5.

The table bellow shows which size stepper motor that fits which axis on the different Creality 3D models:

	X-axis	Y-axis	Z-axis	extruder
CR-10 Mini	42-34	42-34	42-34	42-40
CR-10S (300)	42-40	42-40	42-34	42-40
CR-10-S4 (400)	42-40	42-60	42-34	42-40
CR-10-S5 (500)	42-40	42-60	42-34	42-40
CR-10S Pro	42-40	42-40	42-34	42-40
CR-X	42-40	42-40	42-34	42-40
CR20 Pro	42-34	42-34	42-34	42-40
Ender-3	42-34	42-34	42-34	42-40
Ender-3 Pro	42-34	42-34	42-34	42-40
Ender-5	42-34	42-40 (dual shaft)	42-34 (round shaft)	42-40

Specifications

Tunnel code:	n/a	Hazard class:	n/a
Brand:	Creality3D	Our item no:	DAR00084
Stepper size:	Nema 17

Order now, we can ship this tomorrow!

£34.00 (Incl. 20% VAT)
(£28.33 Excl. 20% VAT)

in stock

Creality 3D CR-10 Max / CR-6 Max 42-60 motor (double shaft)

Zoom in

Description Direct replacement Y-axis stepper motor for the Creality 3D CR-10 Max and CR-6 Max 3D printers. This motor has a double shaft.

Specifications

Tunnel code:	n/a	Stepper size:	Nema 17
Height:	60 mm	Hazard class:	n/a
Brand:	Creality3D	Our item no:	DAR00266

This product is end of life.

Creality 3D CR-5 Pro 42-34 engine

Zoom in

Description Original stepper motor for the Creality CR-5 Pro 3D printer.

Specifications

Tunnel code:	n/a	Hazard class:	n/a
Brand:	Creality3D	Our item no:	DAR00276

This product is end of life.

Creality 3D CR-5 Pro 42-60-Y engine

Zoom in

Description Original Y-axis stepper motor for the Creality CR-5 Pro 3D printer.

Specifications

Tunnel code:	n/a	Hazard class:	n/a
Brand:	Creality3D	Our item no:	DAR00278

This product is end of life.

Creality 3D Ender 6 42-48 Y axis motor

Zoom in

Description Original Y-axis stepper motor for the Creality Ender-6 3D printer with mounting plate and pulley.

Specifications

Tunnel code:	n/a	Hazard class:	n/a
Brand:	Creality3D	Our item no:	DAR00509
Stepper size:	Nema 17

£19.74 (Incl. 20% VAT)
(£16.45 Excl. 20% VAT)

14 day delivery

Creality 3D Ender 6/CR 30 42-48 X axis motor

Zoom in

Description Original X-axis stepper motor for the Creality Ender-6 end CR-30 3D printers, including pulley.

Specifications

Tunnel code:	n/a	Hazard class:	n/a
Brand:	Creality3D	Our item no:	DAR00510
Stepper size:	Nema 17

£14.60 (Incl. 20% VAT)
(£12.17 Excl. 20% VAT)

14 day delivery

Creality 3D Ender 6 42-48 extruder motor

Zoom in

Description Original stepper motor for the Creality Ender-6 3D printer. This is the extruder motor and comes with a drive gear.

Specifications

Tunnel code:	n/a	Hazard class:	n/a
Brand:	Creality3D	Our item no:	DAR00511
Stepper size:	Nema 17

Order now, we can ship this tomorrow!

£18.24 (Incl. 20% VAT)
(£15.20 Excl. 20% VAT)

in stock

Creality 3D CR-30 42-48 Stepper Motor

Zoom in

Description Original stepper motor for the Creality 3D CR-30 and Ender-6 3D printers. The stepper motor comes with a pressed 20 tooth GT2 belt pulley.

Specifications

Tunnel code:	n/a	Stepper size:	Nema 17
Height:	36 mm	Hazard class:	n/a
Brand:	Creality3D	Our item no:	DAR00530

Order now, we can ship this tomorrow!

£9.25 (Incl. 20% VAT)
(£7.71 Excl. 20% VAT)

in stock

Creality 3D CR 30 gear motor

Zoom in

Description Original replacement stepper motor for the Creality 3D CR-30 3D printer. This engine has a powerful gearbox for extra torque.

Specifications

Tunnel code:	n/a	Hazard class:	n/a
Brand:	Creality3D	Our item no:	DAR00531

£39.25 (Incl. 20% VAT)
(£32.71 Excl. 20% VAT)

14 day delivery

Stepstick A4988 stepper motor driver

Zoom in

Description The A4988 stepper motor driver is a driver that can supply up to 2 A when the cooling block is installed. And can be used in the following 5 step resolutions: full-step, half-step, 1/4-step, 1/8-step and 1/16-step.

Cooling block included (including adhesive layer).

Specifications

Tunnel code:	n/a	Brand:	123-3D
Operating volt logic:	3.3 - 5V	Hazard class:	n/a
Operating volt vmot:	8 - 35V	Our item no:	DAR00689
Max current:	2 A

£3.50 (Incl. 20% VAT)
(£2.92 Excl. 20% VAT)

14 day delivery

Stepper motor cable 4p-6p-JST, 150cm

Zoom in

Description This 4-wire cable is suitable for connecting your stepper motor. The cable has a length of 150cm and is equipped with a 6-pin connector and a 4-pin connector.

Specifications

Tunnel code:	n/a	Brand:	123-3D
No of leads:	4	Hazard class:	n/a
Cable length:	150 cm	Our item no:	DAR00793

Order now, we can ship this tomorrow!

£3.20 (Incl. 20% VAT)
(£2.67 Excl. 20% VAT)

in stock

NEMA17 stepper motor | 0.9 degrees per step | 34mm long | 2.1kg/cm

Zoom in

Description This extra shorter stepper motor is ideal for the extruder and takes up less space on your 3D printer.
By double the number of steps per revolution ( 400 steps ), this stepper motor increases the precision of your 3D printer.

The cabling of this stepper motor can be extended with the 4-wire cable.
By placing heat shrink tubing over the solder connection you ensure a neat finish of the cable.

The coil pairs are as follows:
Black - Green
Red - Blue

We recommend the Stepstick DRV8825 driver or equivalent as the most suitable for this stepper motor.

Specifications

Tunnel code:	n/a	Length:	34 mm
Voltage rating:	2 v	Brand:	123-3D
Stepping angle:	0.9	Current rating:	1.2 A
No of leads:	4	Weight:	0.222 kg
Shaft:	5 mm	Hazard class:	n/a
Holding torque:	2.1 kg-cm	Our item no:	DMO00018

£9.80 (sold out) (Incl. 20% VAT)
(£8.17 Excl. 20% VAT)

TL-Smoother including cable

Zoom in

Description With the TL-Smoother you can make your 3D printer even quieter and reduce vibrations.

The smoother is equipped with no less than 8 large diodes that protect your electronics against induction voltages. By using TL-smoother on the X, Y and Z axes of your printer, you get a better print result. The TL-smoother comes with a connection board with 4-pin connectors, so you can easily place the smoother between the stepper motor and the control.

Specifications

Tunnel code:	n/a	Brand:	123-3D
Dimensions:	50 x 30 x 9 mm	Hazard class:	n/a
Cable length:	19 cm	Our item no:	DSD00014

Order now, we can ship this tomorrow!

£6.50 (Incl. 20% VAT)
(£5.42 Excl. 20% VAT)

in stock

Menu

My 123-3D.co.uk

Top Rated Seller

Payment options

Follow us on social media

Official dealer

Shopping cart

Featured Product

Popular products

NEMA 17

Menu

Search product

My 123-3D.co.uk

Top Rated Seller

Payment options

Follow us on social media

Official dealer

Shopping cart

Featured Product

Newsletter

Popular products

NEMA 17
