With the Titan Aero you have access to the ultimate extruder system for your 3D printer. It is the perfect combination of a V6 hotend and a Titan cold end. Both developed for a unique performance.
The Aero is a lightweight and compact extruder system. For example, it takes up 25mm less space than a separate V6 and Titan combination. Because everything is more compact, the extruder can also handle flexible filaments better.
Due to the 3:1 transmission, a lighter NEMA17 stepper motor can be used. This makes the Areo powerful, precise and yet very fast.
The Titan Aero

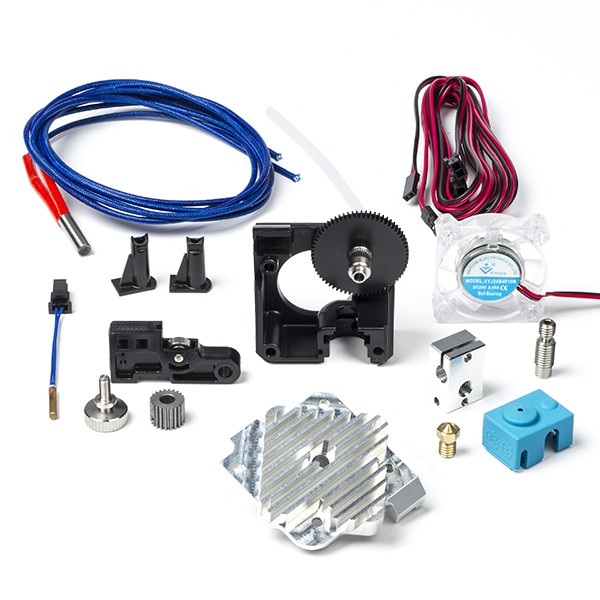

24V extruder kit contains the following parts:
- Titan Aero Heatsink (for 3mm heatbreak)
- E3D V6 Heatbreak
- E3D V6 Heater block
- E3D V6 Nozzle 0.4mm
- Titan housing and plastic parts
- Large sprocket (plastic) with drivegear (metal)
- Small gear (metal)
- 40mm x 40mm x 10mm fan (24V)
- Ceramic heating cartridge (24V)
- E3D thermistor cartridge 100k Ohm Semitec
- PTFE tube 4 x 2mm, 10cm
- Thermal paste 1g
- 2 x connection cable
- Fasteners
The Titan Aero is supplied without a stepper motor.
