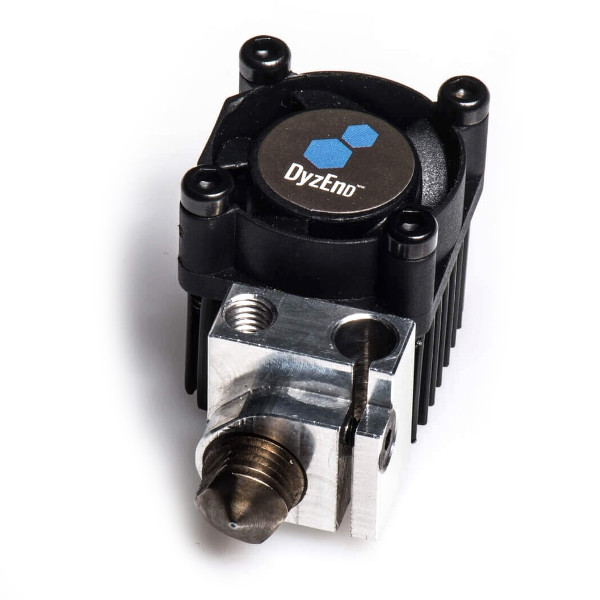

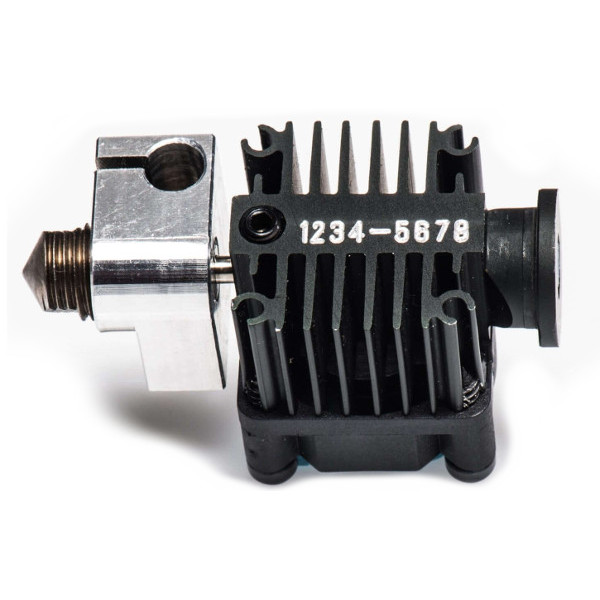

Dyze DyzEnd-X 12V/40W hotend for 1.75mm filament, 0.4mm

Dyze DyzEnd-X 12V/40W hotend for 1.75mm filament, 0.4mm DYZ00000

Description

The DyzEnd is a hotend with a titanium heatbreak, which means it can handle high printing temperatures very well. Temperatures of 500°C are achievable. The DyzEnd's compact construction minimises the loss of build space compared to other hotends.

A very hard nozzle ensures a long life, even with highly corrosive materials. A unique washer makes it possible to change the nozzle without heating up. High throughput speeds can be achieved with the DyzeEnd.

The following parts are included:

DyzEnd-X
- heat sink
- heatbreak
- heat block
- nozzle (0.4mm)
- seal washer
Fan with connector
Heating element with connector
Temperature sensor ( #define TEMP_SENSOR_0 66 )
Extension cables 3 x 100cm

Specifications

Tunnel code:	n/a	Brand:	Dyze Design
Power rating:	40 W	Weight:	0.052 kg
Filament diameter:	1.75 mm	Hazard class:	n/a
Nozzle diameter:	0.4 mm	Our item no:	DYZ00000
Voltage:	12 v

Extra Information

Options

Specifications (PDF)

£122.50 (Incl. 20% VAT)
(£102.08 Excl. 20% VAT)

Backorder - Due January

Dyze DyzEnd 24V/60W Pro hotend kit for 1.75mm filament, 0.4mm

Dyze DyzEnd 24V/60W Pro hotend kit for 1.75mm filament, 0.4mm DDK-01122 DYZ00011

Description Upgrade your 3D printer with this high-performance DyzEnd Pro hotend.

This high quality hotend is very compact and is equipped with a heat block with thermistor that can withstand up to 500°C. In addition, this complete hotend kit comes with an ultra-strong nozzle of tungsten carbide with a diameter of 0.4mm. The thermal properties of this material ensure that the nozzle stays at the right temperature, and you can print faster without loss of quality.

This Dyze hotend comes with:

Fan with connector
Stove with connector
Temperature sensor with connector
3 1m extension cables for connecting the fan, heater and sensor
Black tie wraps
Additional sealing ring

Specifications

Tunnel code:	n/a	Max current:	3.33 A
Max temp:	500 °C	Brand:	Dyze Design
Max current:	60 W	Weight:	0.052 kg
Screwthread type:	M8	Hazard class:	n/a
Voltage:	24 v	Our item no:	DYZ00011

Order now, we can ship this on Monday!

£122.50 (Incl. 20% VAT)
(£102.08 Excl. 20% VAT)

in stock

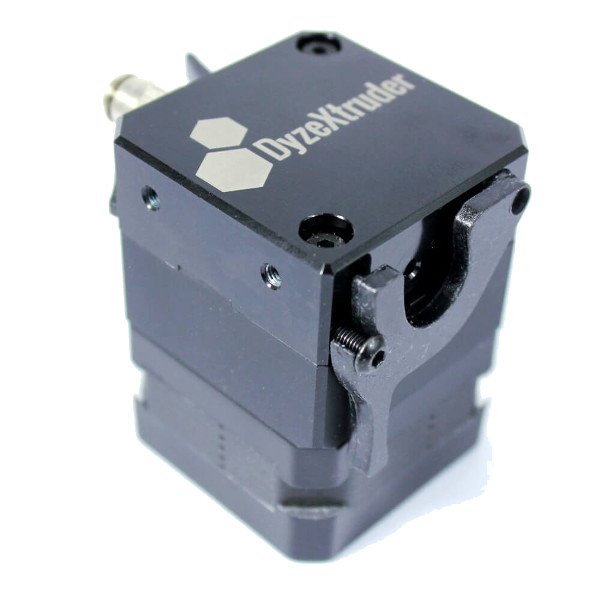

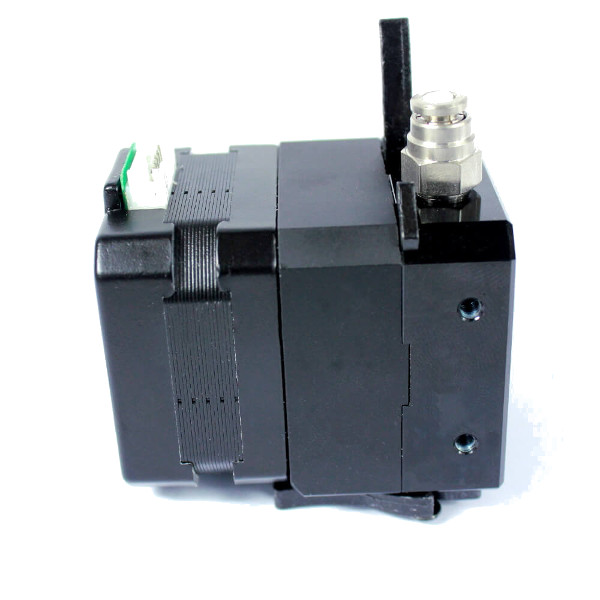

Dyze DyzeXtruder GT, 1.75mm

Dyze DyzeXtruder GT, 1.75mm DYZ00001

Description The DyzeXtruder has a powerful transmission of 5.65:1 and delivers a pushing force of no less than 9kg. The filament is well supported in the extruder and can handle flexible filaments well. The extruder is suitable for Bowden systems and direct drive.

The hotend swapping mechanism is prepared for the DyzEnd hotends from Dyze.

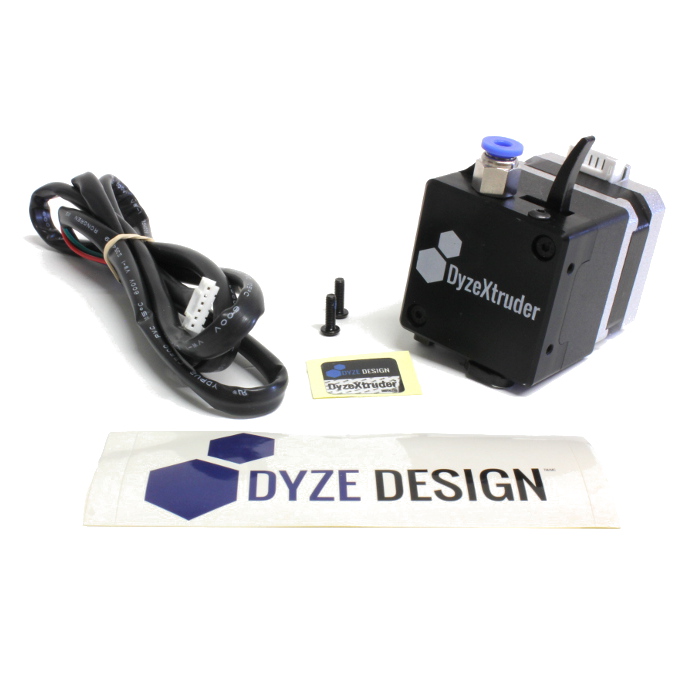

The kit includes the following parts:

DyzeXtruder GT
NEMA17 stepper motor
Connection cable stepper motor (100cm)
Fixing material

Specifications

Tunnel code:	n/a	Weight:	0.275 kg
Current rating:	1 A	Stepper size:	Nema 17
Filament diameter:	1.75 mm	Hazard class:	n/a
Brand:	Dyze Design	Our item no:	DYZ00001

Extra Information

Options

Specifications (PDF)

£135.95 (Incl. 20% VAT)
(£113.29 Excl. 20% VAT)

Backorder - Due January

DyzeXtruder Pro, 1.75mm

DyzeXtruder Pro, 1.75mm DDK-01134 DYZ00012

Description This powerful DyzeExtruder Pro is suitable for any type of filament and ideal if you want to upgrade your 3D printer with a second extruder.

The DyzeExtruder Pro is made entirely of metal, lightweight and very compact in size. The extruder is driven by a stepper motor for a powerful extrusion of filament with a diameter of 1.75mm. In addition, the renewed design of the gear wheel ensures that the filament remains undamaged, even after more than 100 extrusions.

Equipped with a backblock with integrated cooling system for printing in rooms with fluctuating temperatures. An essential feature when you have an open 3D printer!

This Dyze Design extruder comes with:

Stepper motor
1m stepper motor cable
Two mounting screws, type M3x10

NOTE: The mounting bracket is not included and has to be purchased seperately.

Specifications

Tunnel code:	n/a	Current rating:	0.9 A
Max operating temp:	120 °C	Weight:	0.3 kg
Filament diameter:	1.75 mm	Hazard class:	n/a
Screwthread type:	M3	Our item no:	DYZ00012
Brand:	Dyze Design

Order now, we can ship this on Monday!

£183.95 (Incl. 20% VAT)
(£153.29 Excl. 20% VAT)

in stock

Dyze Pulsar 220V large-scale pellet extruder, 3mm

Dyze Pulsar 220V large-scale pellet extruder, 3mm DDK-01196 DYZ00017

Description

Please email before ordering to confirm availability.
The Pulsar is a state-of-the-art and large-scale plastic pellet extruder. It is designed to print parts of 1m³ or more as quickly and cost-effectively as possible and can produce up to 500mm³ (2.5 kg/h) of material. The Pulsar is compatible with any large-scale 3D printer or even robotic arms.

The pulsar is designed with three heat zones. This ensures that the polymer remains at a consistent temperature. The upper part receives the cold pellets and heats them to melting point. Next, the middle zone stabilises the polymer at a precise temperature. A nozzle heater ensures an even flow. This Pulsar also comes with a 3mm nozzle. On order, versions can be supplied with other nozzle diameters of 1mm or 5mm.

Technical information:

Screw diameter: 16mm
Screw length: 235mm
Maximum flow: 500 mm3/s or 2.5kg/h

Specifications

Tunnel code:	n/a	Nozzle temp range:	0-500 °C
Dimensions:	484 mm	Brand:	Dyze Design
Max temp:	500 °C	Weight:	7 kg
Power rating:	1,100 W	Hazard class:	n/a
Nozzle diameter:	3 mm	Max RPM:	100 rpm
Voltage:	220 v	Our item no:	DYZ00017

Please email before ordering to confirm availability.

£9,069.50 (Incl. 20% VAT)
(£7,557.92 Excl. 20% VAT)

Backorder - Due January

Dyze Typhoon 220V/400W extruder for 2.85mm filament

Dyze Typhoon 220V/400W extruder for 2.85mm filament DDK-01176 DYZ00018

Description

The Dyze Typhoon Extruder for 2.85mm filament can print up to 200mm³ per second (0.9kg per hour). The all-in-one extruder is specially designed for industrial 3D printers and is compatible with standard firmware. The extruder is equipped with a quad pinch system, which means that there is contact with the filament at four points. This extreme grip ensures that the filament does not slip and the extruder is also suitable for very soft and flexible filament.

The double heat zone ensures that the polymer remains at a constant temperature. The upper part receives cold filament and generates heat to melt the polymer. The lower part ensures that the polymer is at an exact temperature so that the output from the 1.2mm nozzle is even. A lever on the top takes all the filament away from the moving parts, making it easy to change.

Weight	:	1750g	Filament diameter	:	2.85mm
Max output current	:	200mm³/s	Max print temperature	:	500°C
Max ambient temperature	:	100°C	Heatcore size	:	1.2mm
Total height	:	224mm	Heating power	:	400W

Specifications

Tunnel code:	n/a	Nozzle diameter:	1.2 mm
Dimensions:	224 mm	Brand:	Dyze Design
Max temp:	500 °C	Weight:	1.75 kg
Power rating:	400 W	Hazard class:	n/a
Filament diameter:	2.85 mm	Our item no:	DYZ00018

£2,458.50 (Incl. 20% VAT)
(£2,048.75 Excl. 20% VAT)

Backorder - Due January

Dyze all-in-one water cooling system

Dyze all-in-one water cooling system DDK-01341 DYZ00019

Description The all-in-one water cooling system from Dyze ensures a lower system temperature in your 3D printer. The unit can handle the heat generated by the extrusion system plus any additional motor on your printer. This model has a powerful 1200 litre per hour pump and two 2 x 120mm radiators with a total of 4 fans. The water cooling system is housed in a stainless steel housing.

Specifications

Tunnel code:	n/a	Hazard class:	n/a
Brand:	Dyze Design	Our item no:	DYZ00019

This product is end of life.

Dyze Sentinel filament detector, 1.75mm

Dyze Sentinel filament detector, 1.75mm DYZ00002

Description

The Dyze Sentinel is a filament detector and gives a message if there is something wrong with the filament. In addition to the detection functionality, the Sentinel also makes the filament dust-free.

1.75mm and 2.85mm are supported and it is possible to connect multiple Sentinels using a daisy chain method for easy monitoring of multiple extruders.

The primary connection cable is included.

Specifications

Tunnel code:	n/a	Brand:	Dyze Design
Dimensions:	58 x 29 x 18 mm	Hazard class:	n/a
Voltage:	5 v	Our item no:	DYZ00002
Current consumption:	31 ma

Extra Information Specifications (PDF)

£29.95 (Incl. 20% VAT)
(£24.96 Excl. 20% VAT)

Backorder - Due January

Dyze stainless steel nozzle, 0.2mm

Dyze stainless steel nozzle, 0.2mm DDK-00792 DYZ00003

Description The Dyze stainless steel nozzles are of very good quality and last more than 12 times longer than brass nozzles and 24 times longer than aluminium nozzles.

Because the nozzle is made with a special temperature-resistant nut, it is possible to replace the nozzle at room temperature, which makes changing the nozzle even easier and prevents it from leaking.

The nozzle is suitable for filament with a diameter of 1.75mm and has an opening of 0.2mm.

Compatible with the following part:
		Dyze \| DyzEnd-X Hotend

Specifications

Tunnel code:	n/a	Brand:	Dyze Design
Material:	RVS	Nozzle coating:	none
Filament diameter:	1.75 mm	Hazard class:	n/a
Nozzle diameter:	0.2 mm	Our item no:	DYZ00003
Screwthread type:	M8x1,25

£23.25 (Incl. 20% VAT)
(£19.38 Excl. 20% VAT)

Backorder - Due January

Dyze stainless steel nozzle, 0.4mm

Dyze stainless steel nozzle, 0.4mm DDK-00793 DYZ00004

Description The Dyze stainless steel nozzles are of very good quality and last more than 12 times longer than brass nozzles and 24 times longer than aluminium nozzles.

Because the nozzle is made with a special temperature-resistant nut, it is possible to replace the nozzle at room temperature, which makes changing the nozzle even easier and prevents it from leaking.

The nozzle is suitable for filament with a diameter of 1.75mm and has an opening of 0.4mm.

Compatible with the following part:
		Dyze \| DyzEnd-X Hotend

Specifications

Tunnel code:	n/a	Brand:	Dyze Design
Material:	RVS	Nozzle coating:	none
Filament diameter:	1.75 mm	Hazard class:	n/a
Nozzle diameter:	0.4 mm	Our item no:	DYZ00004
Screwthread type:	M8x1,25

£17.95 (Incl. 20% VAT)
(£14.96 Excl. 20% VAT)

Backorder - Due January

Dyze stainless steel nozzle, 0.6mm

Dyze stainless steel nozzle, 0.6mm DDK-00795 DYZ00005

Description The Dyze stainless steel nozzles are of very good quality and last more than 12 times longer than brass nozzles and 24 times longer than aluminium nozzles.

Because the nozzle is made with a special temperature-resistant nut, it is possible to replace the nozzle at room temperature, which makes changing the nozzle even easier and prevents it from leaking.

The nozzle is suitable for filament with a diameter of 1.75mm and has an opening of 0.6mm.

Compatible with the following part:
		Dyze \| DyzEnd-X Hotend

Specifications

Tunnel code:	n/a	Brand:	Dyze Design
Material:	RVS	Nozzle coating:	none
Filament diameter:	1.75 mm	Hazard class:	n/a
Nozzle diameter:	0.6 mm	Our item no:	DYZ00005
Screwthread type:	M8x1,25

Order now, we can ship this on Monday!

£17.95 (Incl. 20% VAT)
(£14.96 Excl. 20% VAT)

in stock

Dyze stainless steel nozzle, 0.8mm

Dyze stainless steel nozzle, 0.8mm DDK-00791 DYZ00006

Description The Dyze stainless steel nozzles are of very good quality and last more than 12 times longer than brass nozzles and 24 times longer than aluminium nozzles.

Because the nozzle is made with a special temperature-resistant nut, it is possible to replace the nozzle at room temperature, which makes changing the nozzle even easier and prevents it from leaking.

The nozzle is suitable for filament with a diameter of 1.75mm and has an opening of 0.8mm.

Compatible with the following part:
		Dyze \| DyzEnd-X Hotend

Specifications

Tunnel code:	n/a	Brand:	Dyze Design
Material:	RVS	Nozzle coating:	none
Filament diameter:	1.75 mm	Hazard class:	n/a
Nozzle diameter:	0.8 mm	Our item no:	DYZ00006
Screwthread type:	M8x1,25

£17.95 (Incl. 20% VAT)
(£14.96 Excl. 20% VAT)

Backorder - Due January

Dyze stainless steel nozzle, 1mm

Dyze stainless steel nozzle, 1mm DDK-00794 DYZ00007

Description The Dyze stainless steel nozzles are of very good quality and last more than 12 times longer than brass nozzles and 24 times longer than aluminium nozzles.

Because the nozzle is made with a special temperature-resistant nut, it is possible to replace the nozzle at room temperature, which makes changing the nozzle even easier and prevents it from leaking.

The nozzle is suitable for filament with a diameter of 1.75mm and has an opening of 1mm.

Compatible with the following part:
		Dyze \| DyzEnd-X Hotend

Specifications

Tunnel code:	n/a	Brand:	Dyze Design
Material:	RVS	Nozzle coating:	none
Filament diameter:	1.75 mm	Hazard class:	n/a
Nozzle diameter:	1 mm	Our item no:	DYZ00007
Screwthread type:	M8x1,25

£17.95 (Incl. 20% VAT)
(£14.96 Excl. 20% VAT)

Backorder - Due January

Dyze stainless steel nozzle, 1.2mm

Dyze stainless steel nozzle, 1.2mm DDK-00790 DYZ00008

Description The Dyze stainless steel nozzles are of very good quality and last more than 12 times longer than brass nozzles and 24 times longer than aluminium nozzles.

Because the nozzle is made with a special temperature-resistant nut, it is possible to replace the nozzle at room temperature, which makes changing the nozzle even easier and prevents it from leaking.

The nozzle is suitable for filament with a diameter of 1.75mm and has an opening of 1.2mm.

Compatible with the following part:
		Dyze \| DyzEnd-X Hotend

Specifications

Tunnel code:	n/a	Brand:	Dyze Design
Material:	RVS	Nozzle coating:	none
Filament diameter:	1.75 mm	Hazard class:	n/a
Nozzle diameter:	1.2 mm	Our item no:	DYZ00008
Screwthread type:	M8x1,25

£17.95 (Incl. 20% VAT)
(£14.96 Excl. 20% VAT)

Backorder - Due January

DyzEnd Pro hotend, 0.4mm

DyzEnd Pro hotend, 0.4mm DDK-01110 DYZ00010

Description Upgrade your 3D printer with this high-performance DyzEnd Pro Hotend.

This high-quality hotend has a very compact size and is equipped with a heat block with thermistor that can withstand up to 500°C. In addition, this complete hotend kit comes with an ultra-strong nozzle of tungsten carbide with a diameter of 0.4mm. The thermal properties of this material ensure that the nozzle stays at the right temperature, and you can print faster without loss of quality.

This Dyze Design hotend comes with:

Fan with connector.
Stove with connector.
Temperature sensor with connector.
3 x 1m extension cables for connecting the fan, heater and sensor.
Black tie wraps.
Additional sealing ring.

Specifications

Tunnel code:	n/a	Max current:	3.33 A
Max temp:	500 °C	Brand:	Dyze Design
Max current:	60 W	Weight:	0.052 kg
Screwthread type:	M8	Hazard class:	n/a
Voltage:	12 v	Our item no:	DYZ00010

£121.50 (Incl. 20% VAT)
(£101.25 Excl. 20% VAT)

Backorder - Due January

Dyze PT100 temperature sensor

Dyze PT100 temperature sensor DDK-00909 DYZ00014

Description Measure temperatures up to 400°C with this PT100 temperature sensor from Dyze.

This thermistor from Dyze has been specially developed for the DyzEnd-X hotend and can easily be mounted in the heatblock thanks to the M5 screw thread. The cable has a length of 10cm and is equipped with a Molex connector of 15 x 5mm.

PLEASE NOTE: you must order the corresponding Dyze amplifier board separately.

Specifications

Tunnel code:	n/a	Brand:	Dyze Design
Max temp:	400 °C	Connector A:	Molex 2 pin female
Screwthread type:	M5	Hazard class:	n/a
Cable length:	10 cm	Our item no:	DYZ00014

£24.95 (Incl. 20% VAT)
(£20.79 Excl. 20% VAT)

Backorder - Due January

Dyze thermistor with Molex connector 500°C

Dyze thermistor with Molex connector 500°C DDK-00901 DYZ00009

Description With this Dyze thermistor you can take accurate temperature measurements up to 500°C!

The thermistor features a Molex connector and an M5 thread for easy attachment of your Dyze hotend. The cable is provided with a black shrink tube and has a length of 10.2cm. At a temperature of 20°C the resistance is 5.2 MΩ and at 400°C it is 250 Ω.

CAUTION: Please update your firmware before getting started with this thermistor.

Specifications

Tunnel code:	n/a	Brand:	Dyze Design
Resistance tolerance:	500 °C	Hazard class:	n/a
Cable length:	10 cm	Our item no:	DYZ00009

Order now, we can ship this on Monday!

£25.95 (Incl. 20% VAT)
(£21.63 Excl. 20% VAT)

in stock

Dyze filament sentinel, 2.85mm

Dyze filament sentinel, 2.85mm DDK-00009 DYZ00013

Description With the Filament Sentinel from Dyze, filament congestion is a thing of the past!

Prevent failed 3D prints with this filament detector that gives a signal when something is wrong with the filament. In addition, the detector cleans the filament and is easy to mount on your single or dual extruder 3D printer. Attach one or more sentinels to the filament coil holder or in front of the extruder for optimal operation. Suitable for any type of filament with a diameter of 2.85mm.

Note: Does your 3D printer not have an LCD screen? Then the sentinel only works with an Octoprint/OctoPi.

Download the specifications here.

Specifications

Tunnel code:	n/a	Voltage:	5 v
Current rating:	31 ma	Brand:	Dyze Design
Max operating temp:	70 °C	Hazard class:	n/a
Filament diameter:	2.85 mm	Our item no:	DYZ00013
Screwthread type:	M8

Order now, we can ship this on Monday!

£32.95 (Incl. 20% VAT)
(£27.46 Excl. 20% VAT)

in stock

Dyze sentinel cable for daisy chain, 100mm

Dyze sentinel cable for daisy chain, 100mm DDK-00981 DYZ00015

Description Easily connect multiple filament sentinels to your 3D printer with this daisy chain sentinel cable from Dyze.

Do you have a dual extruder 3D printer without a filament detector and do you want to connect multiple sentinels? Then this is possible with this specially developed 10cm 3-wire cable, equipped with two connectors for easy attachment.

Specifications

Tunnel code:	n/a	Connector B:	-
Cable length:	10 cm	Hazard class:	n/a
Brand:	Dyze Design	Our item no:	DYZ00015
Connector A:	-

£4.80 (Incl. 20% VAT)
(£4.00 Excl. 20% VAT)

Backorder - Due January

Capricorn XS heatbreak liner, 2mm x 3mm (300mm)

Capricorn XS heatbreak liner, 2mm x 3mm (300mm) DBW00066

Description The Capricorn XS heatbreak liner is specially made to fit perfectly in the heatbreak. The liner is also 30cm long so you can provide for 10 heatbreaks.

Specifications

Tunnel code:	n/a	Brand:	Capricorn
Material:	PTFE	Inner diameter:	2 mm
Filament diameter:	1.75 mm	Outer diameter:	3 mm
Colour:	dark blue	Hazard class:	n/a
Length:	30 cm	Our item no:	DBW00066

Order now, we can ship this on Monday!

£9.95 (Incl. 20% VAT)
(£8.29 Excl. 20% VAT)

in stock

Heaterblock insulation cotton

123-3D Heaterblock insulation cotton DVB00017

Description This 3mm thick insulation cotton is suitable to insulate your heater block so that less heat is lost. This keeps the temperature of your hotend more stable, which in turn results in better prints.

Specifications

Tunnel code:	n/a	Brand:	123-3D
Dimensions:	75 x 21 mm	Hazard class:	n/a
Thickness:	3 mm	Our item no:	DVB00017

Order now, we can ship this on Monday!

£0.95 (Incl. 20% VAT)
(£0.79 Excl. 20% VAT)

in stock

Dyze PT100 Amplifier Board

Dyze PT100 Amplifier Board DDK-02411 DYZ00020

Description With the PT100 Amplifier Board from Dyze you can connect a PT100 temperature sensor to your 3D printer. The component amplifies the signal from the PT100 to a voltage level that your printer can accurately read. The amplifier can be connected in series (daisy-chaining) for multiple PT100 sensors.

Specifications

Tunnel code:	n/a	Hazard class:	n/a
Input voltage:	3.3V-5V	Our item no:	DYZ00020
Brand:	Dyze Design

£34.36 (Incl. 20% VAT)
(£28.63 Excl. 20% VAT)

Backorder - Due January

© 2024 - 123-3d.co.uk
