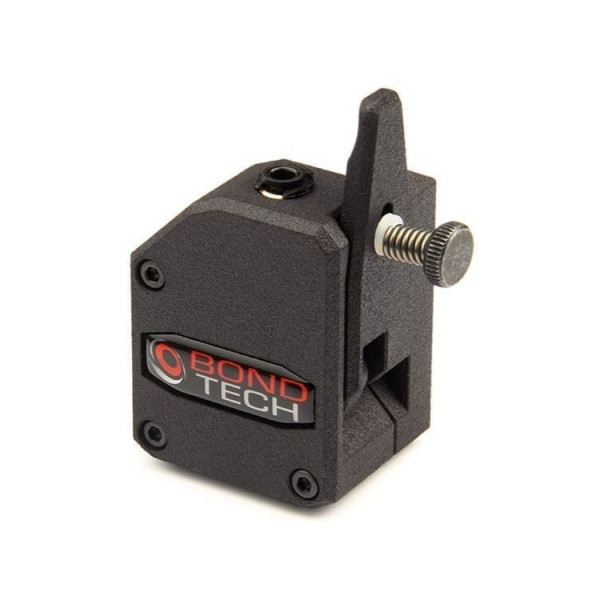

This mirrored Bondtech BMG-M is a compact powerhouse with hardened steel drive wheels and an internal gear ratio of 3:1. Print in high resolution with small nozzles or create fast prints with large nozzles. You can always expect an excellent result.
The unique dual drive ensures trouble-free material feeding, high performance, reliability and precision. The filament will no longer slip or show signs of wear. The BMG extruder is a universal solution suitable for both Bowden and direct drive applications. The housing parts are professionally SLS printed in nylon for maximum strength and precision.
It is possible to work with special filaments, thanks to the high reliability of the extruder. For example, experiment with nylon, carbon and flexible filament. And thanks to the 'Quick-release' lever, changing material is very easy. This extruder is designed for 1.75mm filament, but has been tested to tolerances between 1.5mm and 2.0mm to ensure high performance.
The Bondtech BMG-M standard is optimised for the following hotends:
The integrated torque lock system is strong and changing nozzles is child's play. Mounting the hotend is also easy thanks to the two bolts.
E-step setting:
415 (1.75mm) steps/mm
Data sheet (PDF)
Installation video (YouTube)
