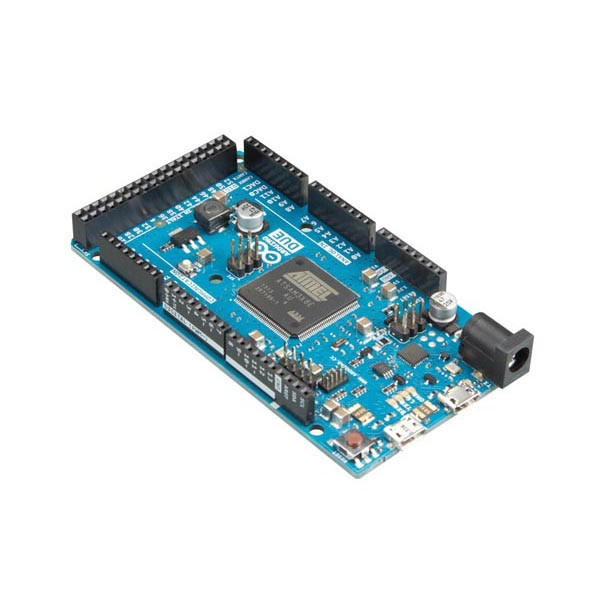

Arduino DUE

£42.50 (Incl. 20% VAT)
(£35.42 Excl. 20% VAT)
14 day delivery
Description
The Arduino DUE is a microcontroller board based on the 32-bit Atmel SAM3X8E ARM Cortex-M3 CPU. The board features 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analogue inputs, 4 UARTs (hardware serial ports), an 84 MHz clock, a USB OTG connection, a power jack, an SPI header, a JTAG header, a reset button, and an erase button.

NOTE: the DUE operates at 3.3V. The maximum voltage on the I/O pins is therefore 3.3V. Higher voltages can damage the board.

Please note we do not offer support on the installation of this product.
Specifications
Tunnel code: n/a Brand: Arduino
Input voltage: 7 - 12V recommended Weight: 0.036 kg
Length: 101 mm Hazard class: n/a
Width: 53 mm Our item no: DAR00000
DC current for 3.3V pin: 800 ma
