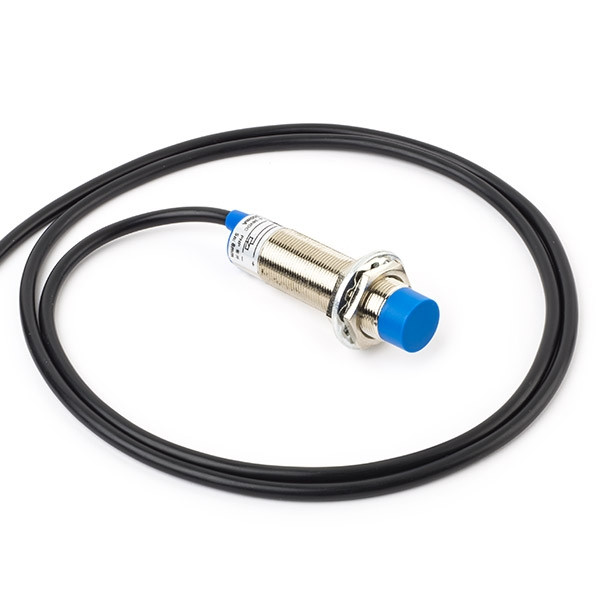

Easily add an automatic bed levelling system to your 3D printer with this inductive distance sensor. The sensor triggers on metal objects and has a theoretical measuring distance of
8mm. The diameter of the sensor is 18mm.
The sensor operates on 6V-36V DC, is a PNP variant/NO and has an internal pull-up resistor which makes it necessary to add a series resistor to the signal connection.
Wire colours:
Brown: +V (12V)
Black: Output (to voltage divider)
Blue: 0V (gnd)
Data sheet (PDF)
